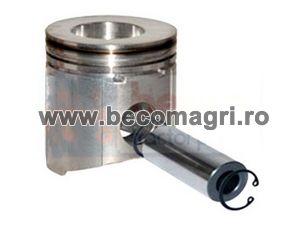

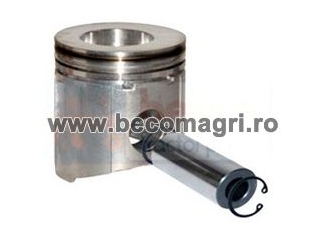

Piston+Bolt John Deere, cod: 26/33-51, AR55980, AR71067, AR79868, AR87738, RE11515, RE19282, RE19283,
Tractor
, ,Serie: 30
, ,1630 (Deutschland) ,(With gudgeon pin and circlips ), 1630 (Espana) ,(With gudgeon pin and circlips ), 1630OU ,(With gudgeon pin and circlips ), 1630VU ,(With gudgeon pin and circlips ), 2130 (Deutschland) ,(With gudgeon pin and circlips ), 2130 (Espana) ,(With gudgeon pin and circlips )
, ,Serie: 3000
, ,3100 ,(=>384505 ), 3200 ,(With gudgeon pin and circlips ), 3200X ,(With gudgeon pin and circlips )
, ,Serie: 3010
, ,3110 ,(=>384505 ), 3210 (4039D) ,(With gudgeon pin and circlips ), 3210X (4039D) ,(With gudgeon pin and circlips )
, ,Serie: 35
, ,1635 ,(With gudgeon pin and circlips ), 1635EF ,(With gudgeon pin and circlips ), 1635EV ,(With gudgeon pin and circlips ), 2135 ,(With gudgeon pin and circlips )
, ,Serie: 40
, ,1040 (Deutschland) ,(With gudgeon pin and circlips ), 1040 (Espana) ,(With gudgeon pin and circlips ), 1040V ,(With gudgeon pin and circlips ), 1140 (Deutschland) ,(With gudgeon pin and circlips ), 1140 (Espana) ,(With gudgeon pin and circlips ), 1140F ,(With gudgeon pin and circlips ), 1140V ,(With gudgeon pin and circlips ), 1640 (Deutschland) ,(With gudgeon pin and circlips ), 1640 (Espana) ,(With gudgeon pin and circlips ), 1640F ,(With gudgeon pin and circlips ), 1840 (Deutschland) ,(With gudgeon pin and circlips ), 1840 (Espana) ,(With gudgeon pin and circlips ), 1840F ,(With gudgeon pin and circlips ), 2040 (Deutschland) ,(With gudgeon pin and circlips ), 2040 (Espana) ,(With gudgeon pin and circlips ), 2040 ,(USA-3164D), 2040 ,(USA-3179D) (USA 350000=> ), 2040F ,(With gudgeon pin and circlips ), 2040S (Deutschland) ,(With gudgeon pin and circlips ), 2040S (Espana) ,(With gudgeon pin and circlips ), 2240 ,(With gudgeon pin and circlips ), 2940 ,(With gudgeon pin and circlips ), 3040 ,(With gudgeon pin and circlips ), 3140 (Deutschland) ,(With gudgeon pin and circlips ), 3140 (Espana) ,(With gudgeon pin and circlips ), 3340 ,(With gudgeon pin and circlips ), 3640 ,(With gudgeon pin and circlips ), 840, 940 (Deutschland), 940 (Espana), 940V
, ,Serie: 45
, ,1445F ,(With gudgeon pin and circlips ), 1745F ,(With gudgeon pin and circlips ), 1845F ,(With gudgeon pin and circlips )
, ,Serie: 50
, ,1350 ,(With gudgeon pin and circlips ), 1550 ,(With gudgeon pin and circlips ), 1750 ,(With gudgeon pin and circlips ), 1750V ,(With gudgeon pin and circlips ), 1850 (Deutschland) ,(With gudgeon pin and circlips ), 1850 (Espana) ,(With gudgeon pin and circlips ), 1850F ,(With gudgeon pin and circlips ), 1850N ,(With gudgeon pin and circlips ), 1850V ,(With gudgeon pin and circlips ), 2150 ,(With gudgeon pin and circlips ), 2250 (Deutschland) ,(With gudgeon pin and circlips ), 2250 (Espana) ,(With gudgeon pin and circlips ), 2250F ,(With gudgeon pin and circlips ), 2350 ,(With gudgeon pin and circlips ), 2450 (Deutschland) ,(With gudgeon pin and circlips ), 2450 (Espana) ,(With gudgeon pin and circlips ), 2550 ,(With gudgeon pin and circlips ), 2650CS ,(With gudgeon pin and circlips ), 2950 ,(With gudgeon pin and circlips ), 3050 ,(With gudgeon pin and circlips ), 3150 (Espana) ,(With gudgeon pin and circlips ), 3150 (USA) ,(With gudgeon pin and circlips ), 3350 (Deutschland) ,(With gudgeon pin and circlips ), 3350 ,(Espana-6359D) ,(=>155860 ; With gudgeon pin and circlips )
, ,Serie: 55
, ,2155 ,(With gudgeon pin and circlips ), 2255 ,(With gudgeon pin and circlips ), 2355 ,(With gudgeon pin and circlips ), 2555CS ,(With gudgeon pin and circlips ), 2955 ,(With gudgeon pin and circlips ), 3055 ,(With gudgeon pin and circlips ), 3155 ,(With gudgeon pin and circlips ),
Motor:
, ,3029D - DSPG
, ,3164D - DSPG
, ,3179D - DSPG
, ,4039D - DSPG
, ,4239D - DSPG
, ,6359D - DSPG
TEHNIC:
, ,Type Bore ??????ª??? Rings Al-fin A (mm) B (mm) C (mm) D (mm) E (mm)
, ,B3 106.50 3 Al-fin 66.35 18.92 112.00 34.94
Pentru identificarea corecta a unui piston sau set de segmenti avem nevoie de cateva indicii:
Agentul de vanzari va poate cere unele informatii din urmatoarele:
Iata care sunt acestea si cum pot fi identificate.
 |
Intoarceti pistonul invers si masurati diametrul exterior Indiferent ca pistonul este cu "aripi" sau drept ca, cel din imagine, masurati intotdeauna in partea de jos a acestuia. Aceasta cota este implicit interiorul cilindrului si diametrul segmentilor REMARCA: Pastrand pozitia si rotind pistonul puteti descoperi o eroare de 0.01 / 0.3 mm. Acesta este un lucru absolut normal de fabricatie. |
 |
Diametrul boltului Pentru o mai buna precizie puteti masura diametrul exterior al boltului. |
| Distanta din centrul imaginar al boltului pana la camera de ardere: Incercati o aranjare a instrumentului de masurat asemanatoare cu cea din imagine |
 |
 |
<-- Grosime unui segment. ( foto stanga ) |
| Nu incercarti sa masurati segmentii din exterior: - Riscati sa ii distrugeti ! - Diametrul exterior al acestora este intotdeauna identic cu exteriorul pistonului din prima figura |
.jpg?1492117795396) |
Pozitionati segmentul asemenea imaginii:
Doar asa va puteti da seama cu ochiul liber daca segmentul este conic ( trapez ) sau nu.
